MISTRAS supports our clients with high-quality storage tank inspection, engineering, maintenance, access, and data management expertise, as preventing corrosion, cracking, and leaking in refinery storage tanks is crucial for plant productivity, safety, and compliance.
Refinery storage tanks are some of the most essential assets within a refinery, making proper storage tank care of the utmost importance.
Refinery storage tank failures can lead to massive costs and potentially-disastrous hazards. Leaking hazardous gases and liquids can create serious safety issues for personnel and the environment, and can potentially lead to more serious consequences if the leaks contain flammable materials.
MISTRAS offers decades of experience to support the design, operational, and maintenance phases of refinery storage tanks, ensuring that your tanks remain in-service and in compliance.
Our storage tank protection solutions include:
- Engineering experts to optimize new and existing storage tank designs and ensure regulatory compliance
- A robust suite of traditional and advanced non-destructive testing (NDT) inspection solutions to detect and locate leaks, corrosion, and other tank damages
- Maintenance and light mechanical service technicians for corrosion, insulation, and industrial cleaning services
- Storage tank-specific inspection data management software
- At-height and subsea access solutions, including rope access technicians, trained divers, and drones.
As a OneSource provider of asset protection solutions, MISTRAS satisfies all of your storage tank protection needs.

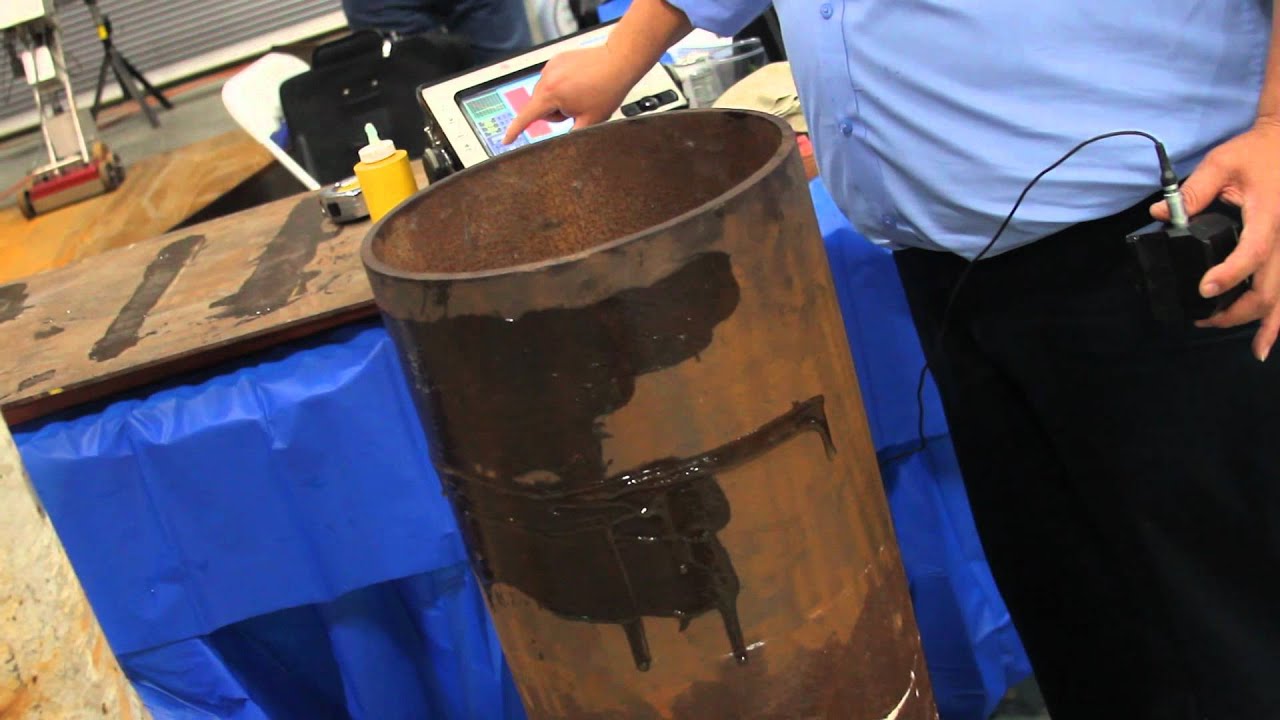

Storage Tank Non-Destructive Testing (NDT) Inspection Services

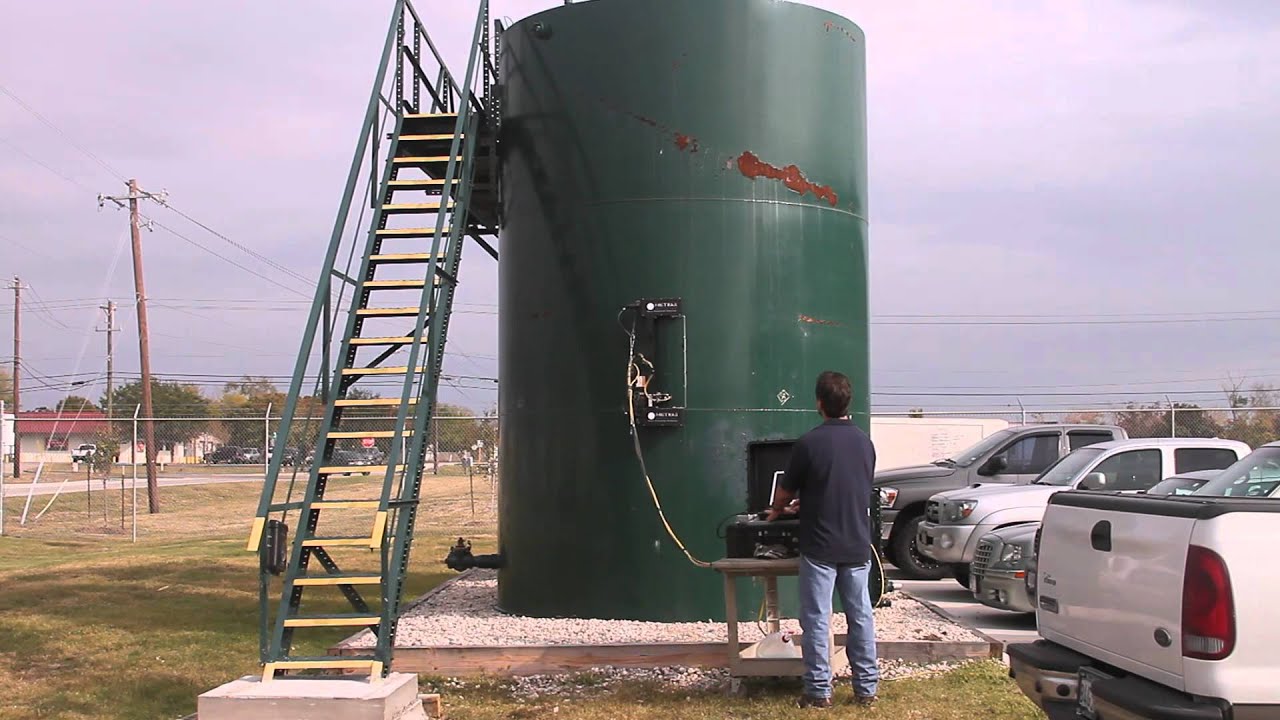

We use a wide range of advanced NDT techniques for aboveground and underground tanks and all of their individual components, including floors, welds, annular rings, roofs, shells, and more.
MISTRAS inspects tanks throughout all phases of their operational lives, encompassing their construction, inspection, and maintenance. Our inspections help tank operators identify signs of damage, including corrosion, leakage, cracking, and wall thinning.
Our NDT tank inspection techniques and services include:
In-Service, Intrinsically Safe (IS) Storage Tank Inspections
Our customized, non-intrusive tank inspection services — which include the use of an intrinsically safe (IS) probe —maximize safety by allowing owners to determine the relative condition of their storage tanks without sending technicians into the asset.
MISTRAS’ in-service, IS scanning service is a reliable, environmentally-conscious, and safe tank inspection method, primarily used for ultrasonic wall thickness measurements. These inspections allow tank owners to postpone a full out-of-service inspection until a more appropriate time, reducing costs, downtime, and lost profits.
Additional benefits of this tank scanning service include:
- Tanks stay in service
- Personnel and environmental exposure to hazardous product is minimized
- Accurate corrosion rate assessment
- Hazardous waste disposal costs are minimized or eliminated
- Environmental and operational liabilities are significantly reduced
TankPAC™ – Tank Bottom Condition Assessment
TankPAC™ is a surveying tool designed to assess the tank bottom condition in aboveground storage tanks (ASTs).
TankPAC is an in-service test that utilizes AE transducers that are mounted on the outside of the tank wall to listen to the active corrosion inside the tank. Based on the test results and the resulting grade given to the tank, the owner/operator can decide whether or not it is necessary to open the tank for decontamination and internal inspection.
In addition to detecting active corrosion, TankPAC’s AE technology can also be used for detecting and locating active leaks.
TankPAC helps tank operators optimize their maintenance budgets, as it has shown that tanks are often opened unnecessarily, leading to unnecessary downtime and lost productivity.
Learn more about the TankPAC technology package here.
Storage Tank Engineering Consulting Services
With expert engineers on staff covering a variety of engineering disciplines, our engineering services help to ensure that your tanks are properly-designed, operating efficiently, and free of mechanical integrity concerns.
MISTRAS Group engineers can assist with the development of inspection and maintenance guidelines and procedures for new tanks, along with evaluating new tank designs and existing atmospheric storage tank conditions for regulatory compliance, including API 620, API 650, and API 653.
Our complete list of AST engineering services is extensive, including but not limited to:
- Allowable Pressure Analysis
- API 620 Design/Corrosion Calculation
- Corrosion Evaluations
- Dike Slope and Volume Survey
- Finite Element Analysis (FEA)
- Fitness-For-Service (FFS) Evaluations
- Floating Roof Buoyancy Analysis
- Foundation Settlement Analysis
- Fracture Mechanics Analysis
- Frangible Roof Evaluations
- Hydro-Test Exemptions
- Metallurgical Evaluation
- Repair/Alteration Scope of Work
- Risk-Based Inspection (RBI) Evaluations
- Roof Hitch Analysis
- Shell & Roof Deflection Analysis
- Spill Prevention, Control, And Countermeasure (SPCC) Inspections
- Venting Analysis
- Verticality/Plumbness/Roundness Evaluation
- Wind and Seismic Analysis
Storage Tank Maintenance Services
Storage tank interiors and exteriors require periodic cleaning to maximize their operational lifetimes and prevent contamination of the product they store. Corrosion, mud, and grime buildup needs to be removed before it worsens, and old coatings that no longer protect tank exteriors may be doing more harm than good.
MISTRAS offers multi-disciplined technicians that not only conduct inspections, but perform light mechanical services to repair the damages they find to get your assets back into service as quickly as possible.
- Abrasive Blasting
- Baking Soda Blasting
- Cleaner/Greener Slurry Blast
- Coating Removal and Re-Application
- Fireproofing- Chartek Certified Applicator
- General Power Tooling
- Surface Preparation
- Flexible and Rigid Lancing
- Glycol Dehydration Cleaning (Manual and Chemical)
- Skid Vacuum Systems
- Storage Tank Cleaning and Degassing
- Cladding
- Insulation Blankets
- Insulation w/ Metal Jacketing
- Spot Welding
At-Height and Subsea Storage Tank Access Services
MISTRAS provides rope access, confined space, and unmanned system (drone) access solutions to inspect and repair the hard-to-reach components on your storage tanks.
Our rope access techs safely access at-height and confined locations, and are able to complete nearly any inspection and maintenance service that those on the ground can.
Diving technicians perform multiple inspection techniques, in addition to drilling, blasting, welding, and formwork maintenance services.
Aerial drones can be used to pre-plan inspection and maintenance plans for tank roofs and interiors by providing initial assessments. Unmanned aerial vehicles (UAVs) can capture high-resolution video/still images, conduct UT and VT NDT inspections, and perform 2D/3D mapping and surveying of storage tank farms.
Storage Tank Inspection Data Management
MISTRAS turns storage tanks into Think Tanks by combining our TankPAC™ tank-bottom condition assessment services with our industry-leading inspection data management software, PCMS®.
MISTRAS engineers feed real-time TankPAC data into PCMS, which performs qualitative and/or quantitative risk-based inspection (RBI) calculations to prioritize high-risk assets, helping to optimize maintenance budgets
In addition to RBI calculations, PCMS recommends future inspection dates, identifies risk thresholds, and centralizes all other storage tank inspection and integrity data, including:
- Corrosion Monitoring Locations (CMLs)
- Thickness Monitoring Locations (TMLs)
- Corrosion Probe Readings
- Corrosion Coupons
TankReporter
TankReporter is MISTRAS’ proprietary electronic reporting system used to generate on-site storage tank inspection reports. Offering complete visual representation of tanks and potential damage areas, the system supports data for tank floors, shells, fixed and floating roofs, foundations, and all related tank components.
Other TankReporter capabilities include:
- Stores all general tank and inspection information
- Engineering calculations (API 653; Tmin and Remaining Life, Hydrostatic Test Height, Visual and UT Inspection Intervals, Next Inspection Date, etc.)
- Data entry compatible with field worksheets
- Identification of Thickness Measurement Locations (TMLs)
- Data representations in 2D/3D plots
- Summarized recommendations
